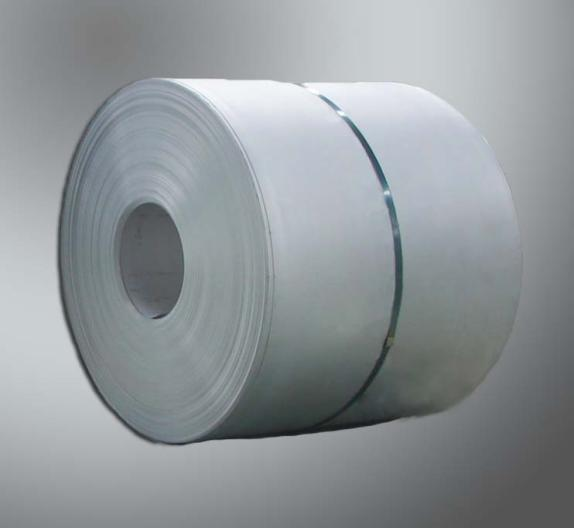

酸洗卷


v 可供范围

厚度(mm)

thickness

宽度(mm)

width

带卷内径(mm)

Steel roll internal diameter

边部状态

State of edge

平整

sking pass

涂油oil（0.5～2.5g/m）

卷重（t）

Volume weight

1.8-5.0

700-1500

610

切边/不切边trimming/No trimming

平整/不平整

skin pass/no skin pass

涂油/不涂油

oil/no oil

Max.25

v 可供牌号及标准

产品类别COMMODITY	标准和牌号SPECIFICATION
产品类别COMMODITY	标准 Standard	牌号 Quality
热轧低碳钢 Hot rolled low carbon steel	JIS G3131	SPHC/SPHD/SPHE/SPHF
	EN10111	DD11/DD12/DD13/DD14
	ASTM A568	SAE1002/SAE1003/SAE1004/SAE1005/SAE1006
结构用热轧钢带 Hot-rolled steel strip structure usage	JIS G3101	SS330/SS400/SS490/SS540
	GB/T 700	Q195/Q195L/Q215/Q235/Q275
	ASTM A568	SAE1007/SAE1008/SAE1009/SAE1010
优质碳素结构钢 improved carbon structural steel	GB/T 710	08/08F/10/10F/15/20/25/30/35/40/45/50
	GB/T 711	08/08F/10/10F/15/20/25/30/35/40/45/50/20Mn/25Mn/30Mn/35Mn/40Mn/45Mn/50Mn/60Mn/65Mn
	ASTM A568	SAE1012/SAE1015/SAE1016/SAE1018/SAE1019/SAE1020/SAE1021/SAE1022/SAE1023/SAE1025/SAE1029/SAE1029/SAE1030/SAE1033/SAE1035
低合金高强结构钢 Low-alloy and high -strength structural steel	GB/T 1591	Q345/Q390/Q420
汽车用钢 Auto steel	JIS G3113	SAPH310/SAPH370/SAPH400/SAPH440
汽车用钢 Auto steel	YB/T 4151	330CL/380CL/440CL/490CL
